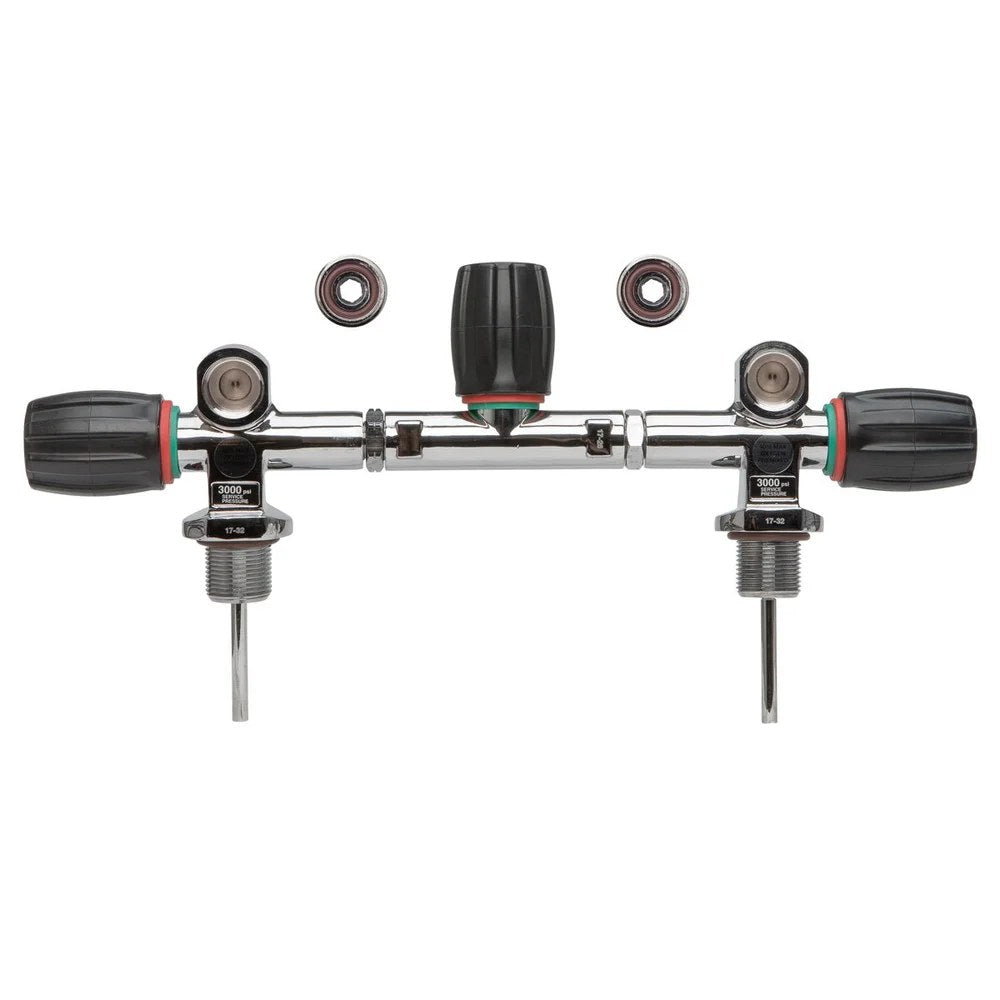

XS Scuba Isolation PRO Manifold

XS SCUBA · ISOLATION PRO MANIFOLD

An isolation manifold with a safety handwheel and a DIN or yoke PRO outlet.

An isolation manifold lets you shut off one side of your doubles without losing the other.

Features

• PRO outlet with spin-out insert for DIN or yoke connection
• XS Scuba Safety Handwheel so you can see at a glance that your valve is fully open
• 1.5 rotations of the handwheel from fully on to fully off
• Center-to-center distance: 215 mm (8.46 in)
• 3/4"-14 NPSM standard inlet threads
• On/off seat in high-strength brass with a nylon seat, PTFE plated for smooth operation
• One-piece safety assembly protected within the valve body
• Copper crush washer sealed bonnet
• Modular access plugs (R/L) included for use as single valves
• Meets CGA V9-2009 standards
• Available in 3000 psi or 3442 psi service pressure

Good to know

Not sure what fits your doubles setup? Call us and we will help you choose.
