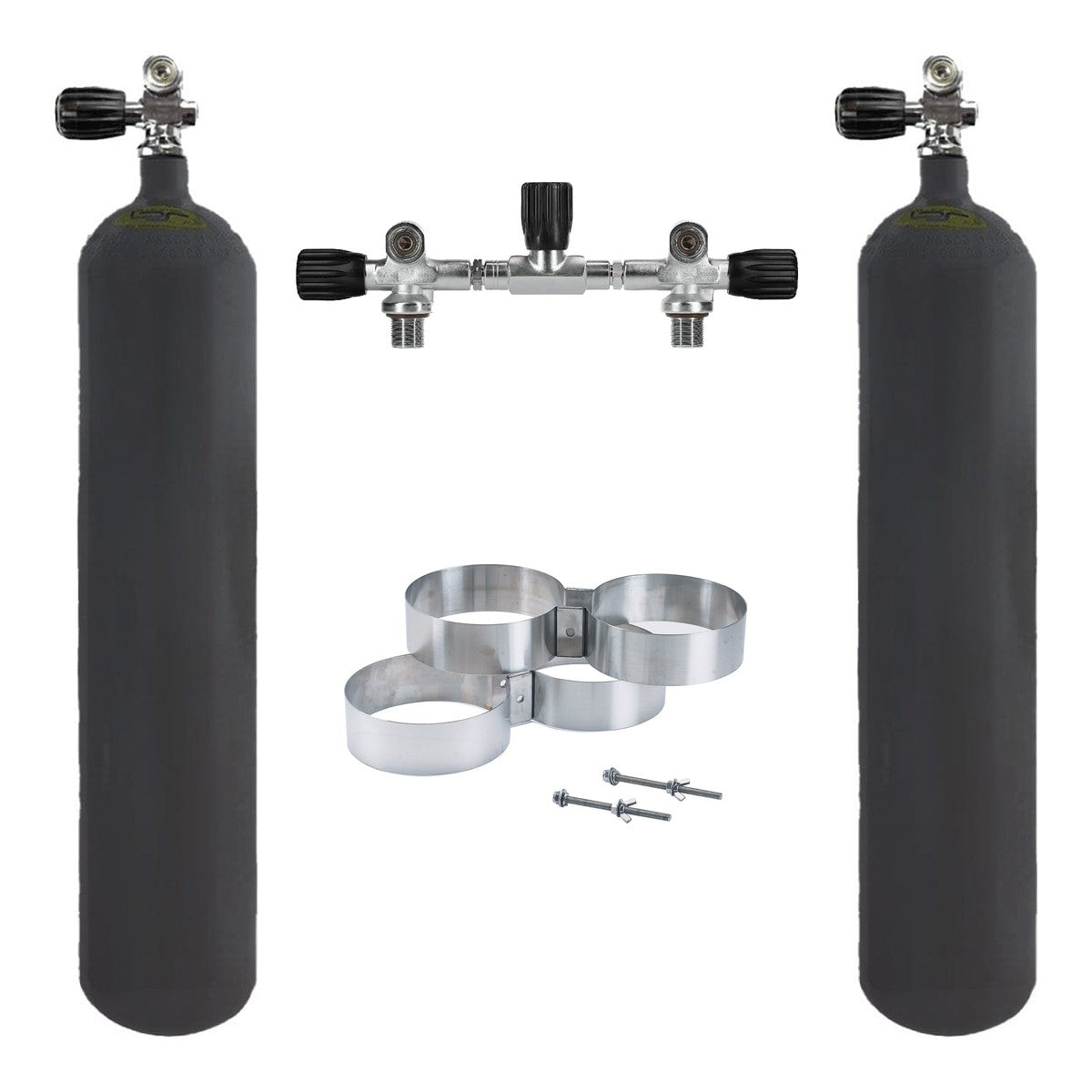

Faber LP50 Mini Doubles Set with Dive Rite Manifold

Everything you need to build a set of mini doubles:
- 2 x Faber L50 50 cu ft low-pressure steel cylinders

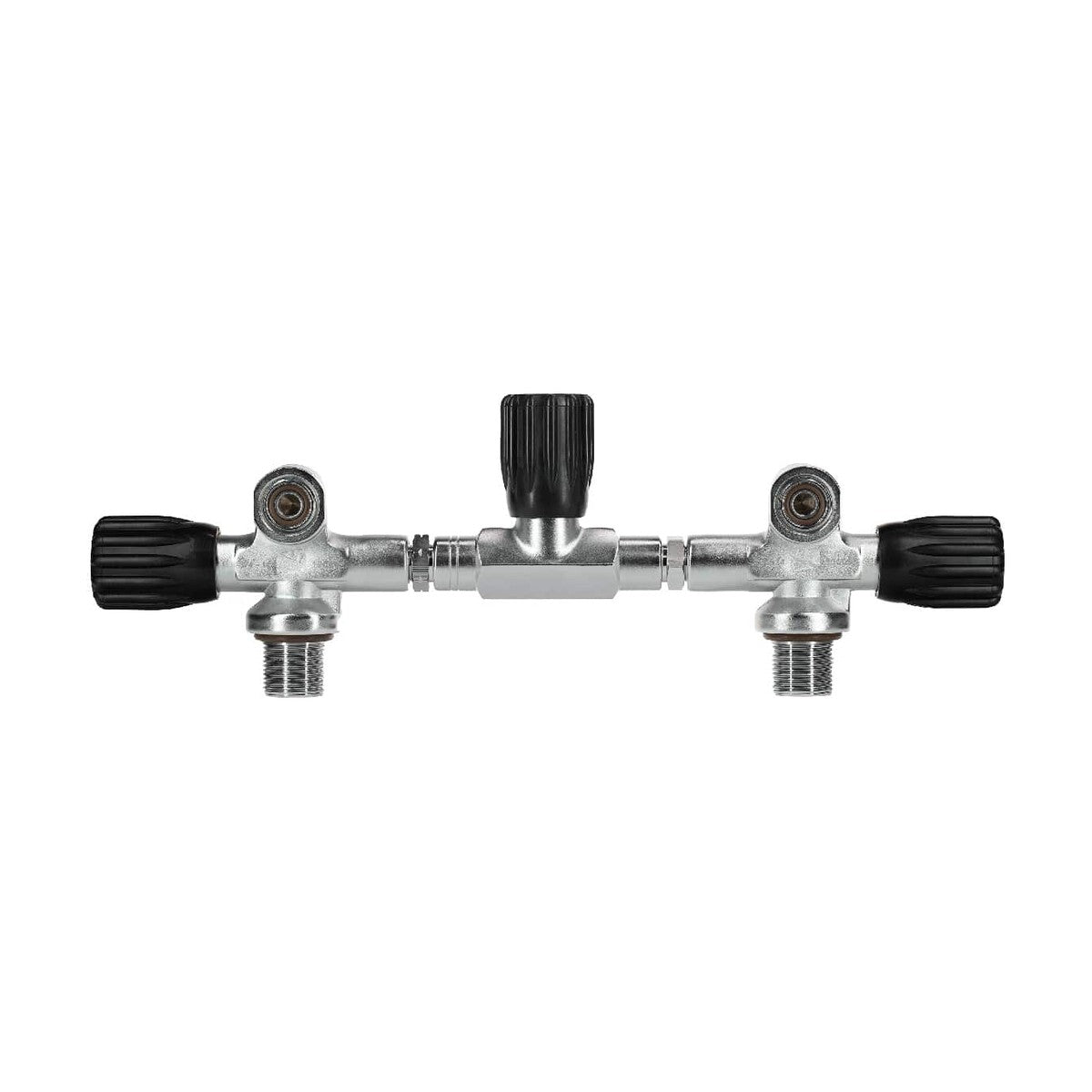

- 1 x Dive Rite 200 bar isolation manifold (DIN or yoke)
- 1 x Dive Rite stainless steel tank bands and bolts for 5.5 in cylinders

Mini doubles give you two independent gas supplies joined by an isolation manifold, in a short, light package. They are a common way to train in doubles, and they work well for smaller divers and shorter technical dives.

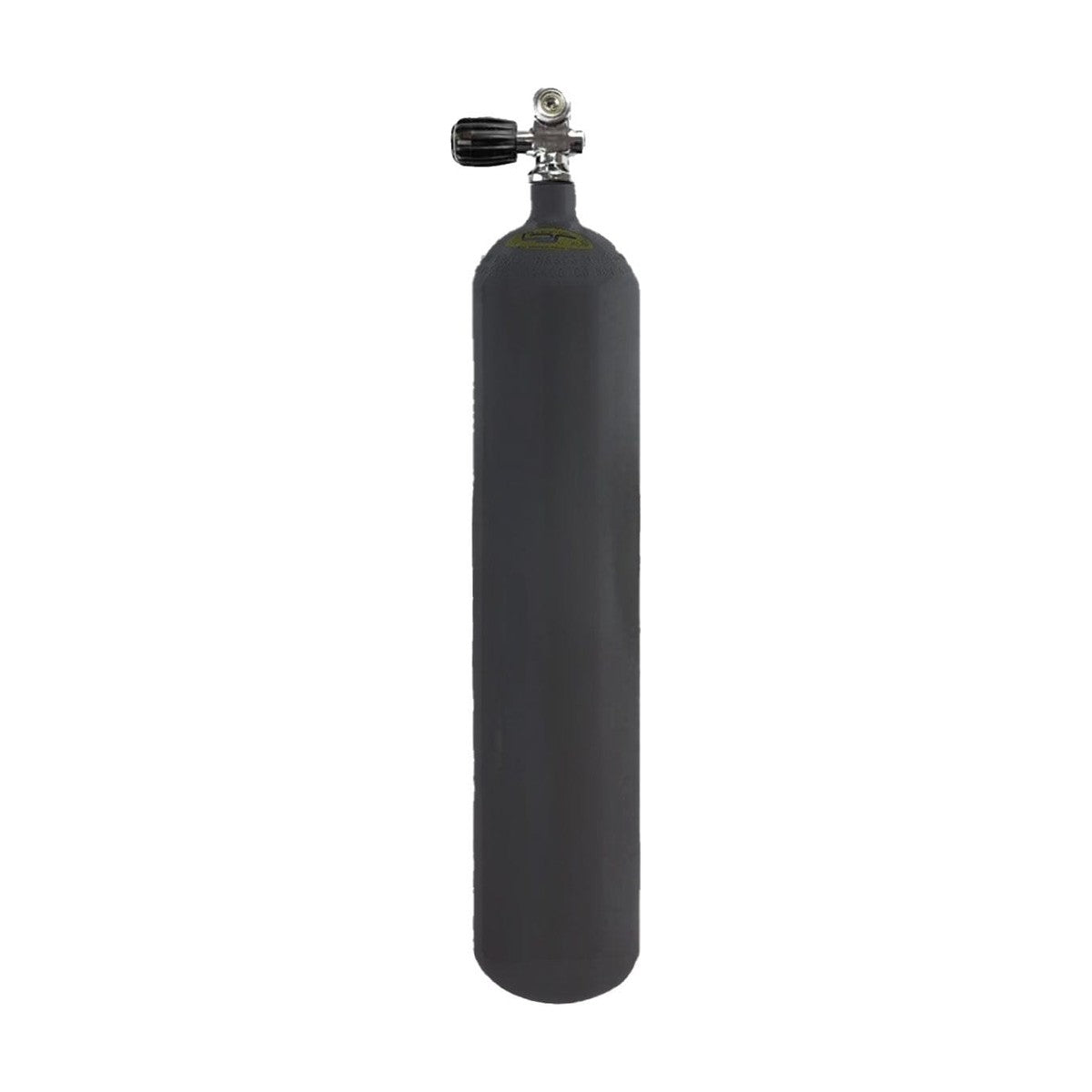

Faber L50 cylinder specifications (each cylinder)
- Service pressure: 2400 psi, +10% fill to 2640 psi
- Gas capacity: 50 cu ft at 2640 psi (100 cu ft for the pair)
- Water volume: 7.8 liters
- Length: 25.2 in
- Outside diameter: 5.51 in
- Weight: 18.9 lbs
- Buoyancy full: -2.43 lbs
- Buoyancy empty: +1.24 lbs

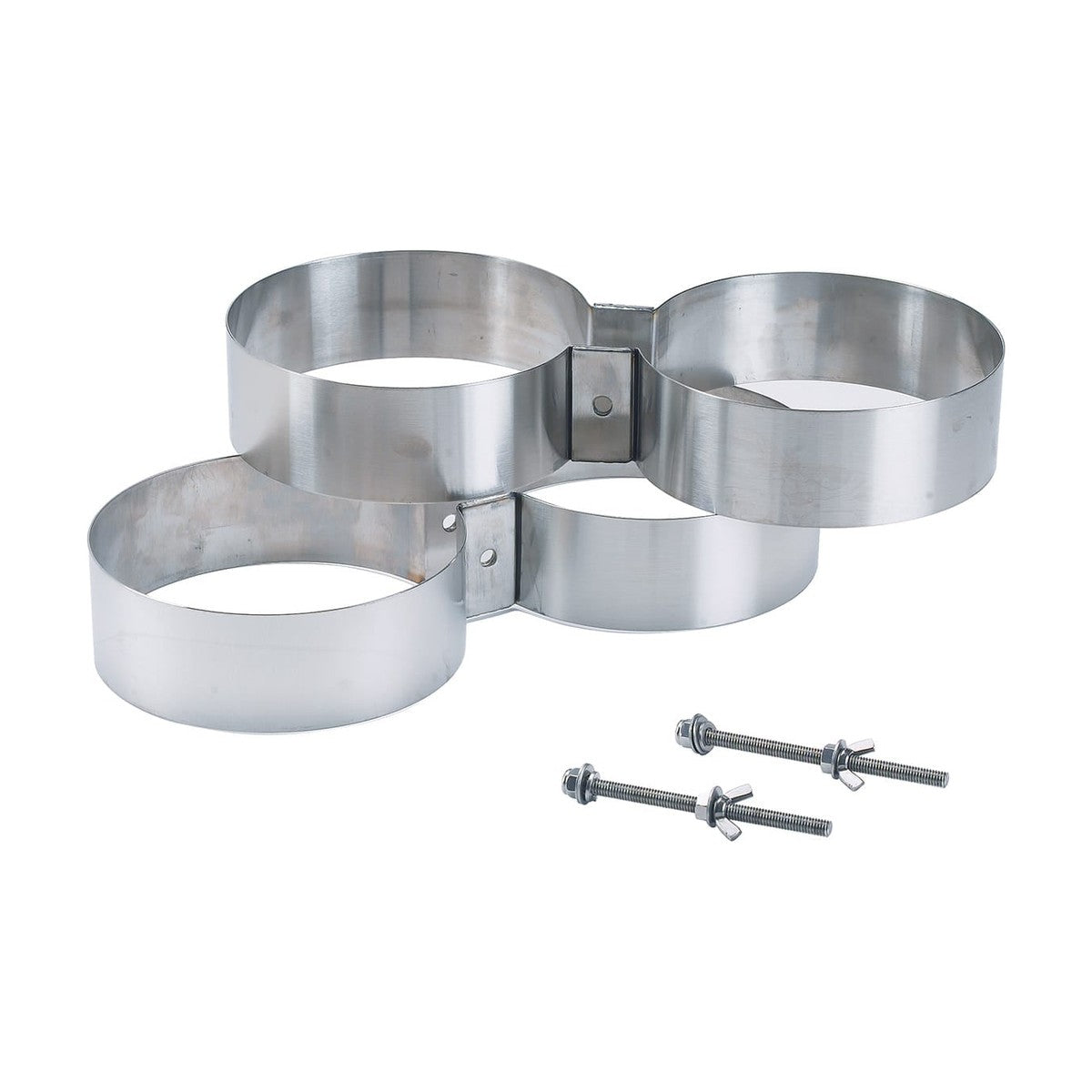

Dive Rite 5.5 in tank bands
- 18-gauge 304 stainless steel with 11-gauge structural plates, made in the USA
- Beveled edges to protect the cylinder paint
- 2.5 in wide, stainless all-thread bolt kit included
- Fit 5.5 in (140 mm) cylinders such as LP45 and LP50

Hydro and VIP inspections must be current before fills.

Questions about setting up mini doubles? Stop by Dive Arizona in Queen Creek or give us a call.
